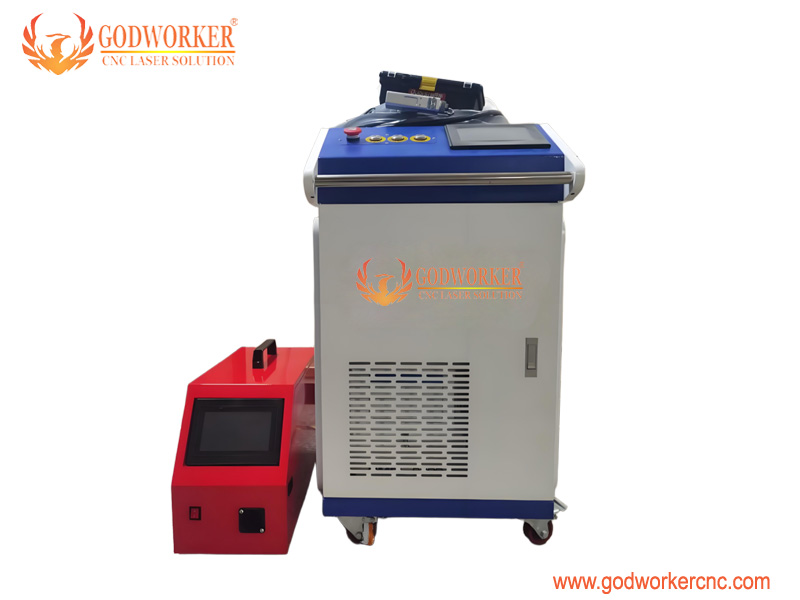

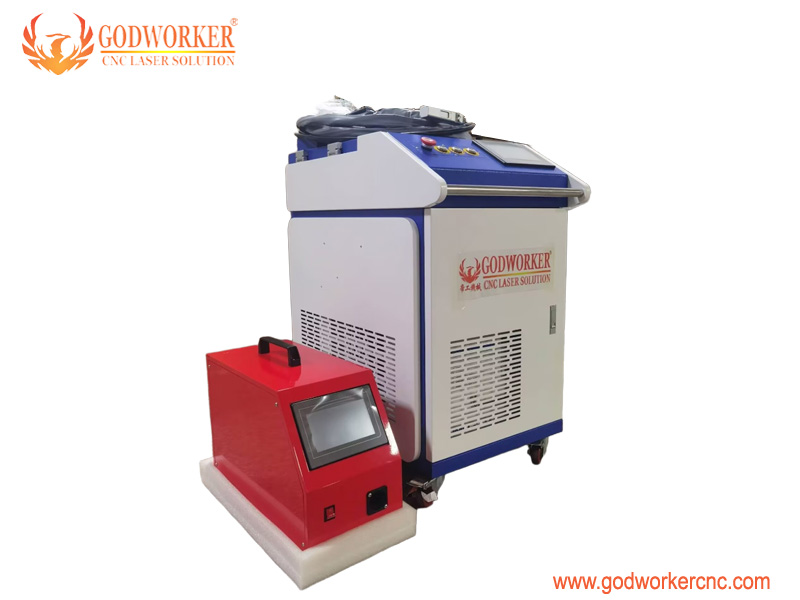

The laser welding 4-in-1 system supports handheld laser welding, , cleaning, welding cleaning and cutting at the same time. The working mode can be switched freely according to different application scenarios, providing diversified solutions for users' different application requirements.

Features:

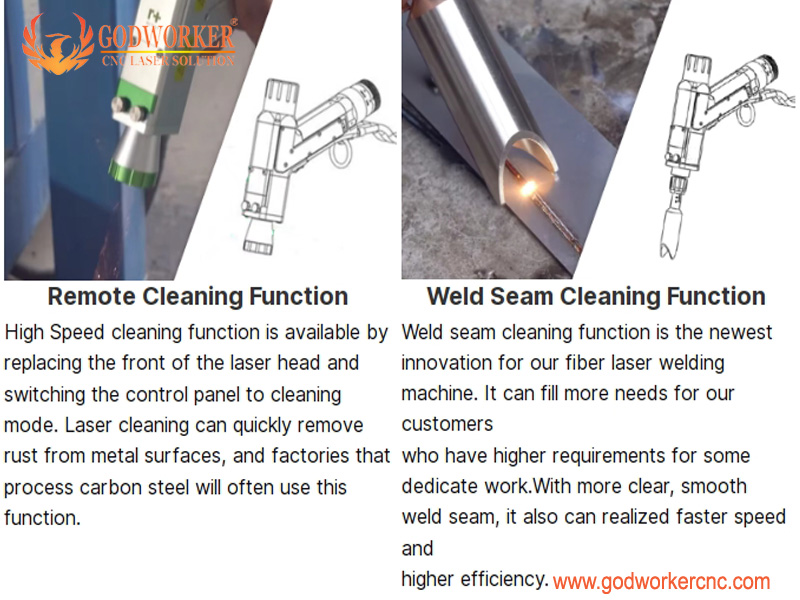

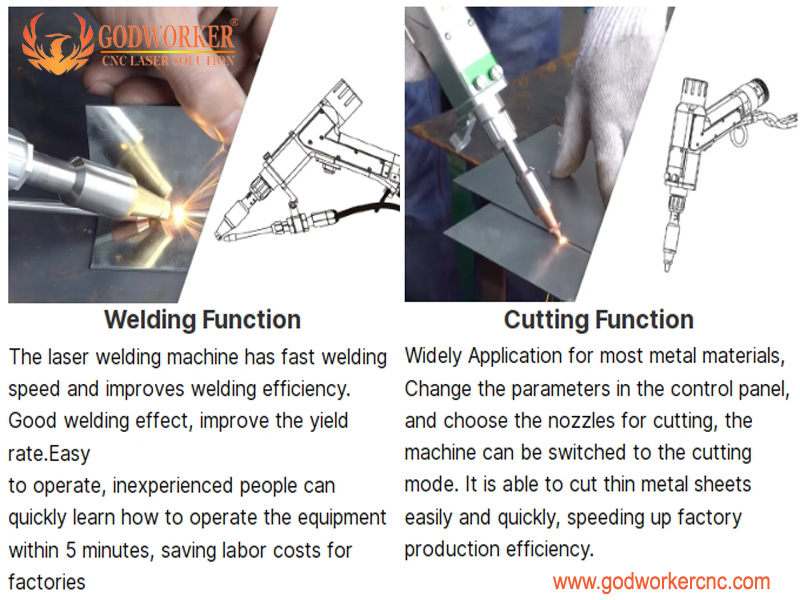

1. The special head and nozzle can be used to achieve different working modes, welding, cleaning and cutting, which greatly facilitates the actual processing of the user.

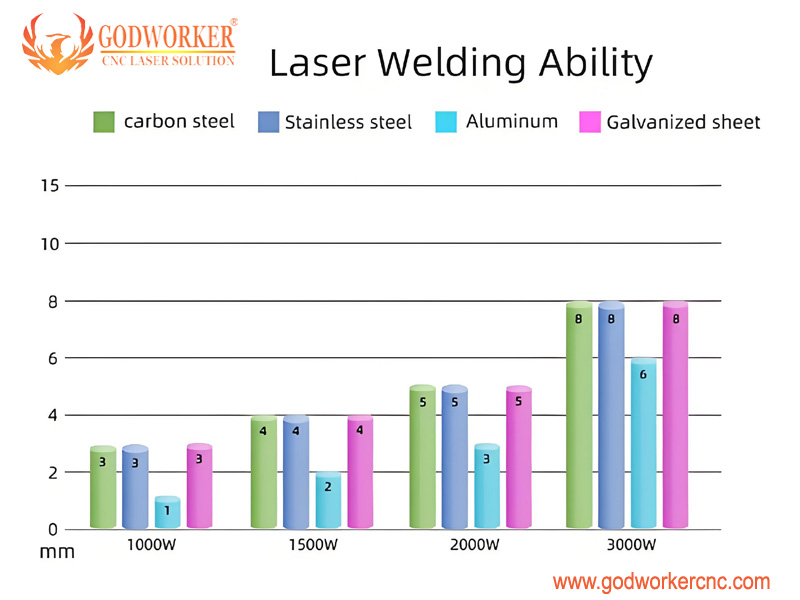

2. The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional welding machine. The weld is fine, the depth is large, the taper is small, the precision is high, fully meet the needs of users in different industries, and the welding is firm, smooth and flat;
3. The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;
4. Can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.
5. The welding gun is with wobble head, and the welding gun is hand-held, flexible and convenient, and the welding distance is longer. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, flat weld welding, small heat affected area during welding, small deformation, large welding depth and firm welding. It is a relatively flexible new welding process for welding large workpieces at a long distance.
6. The product covers welding heads/cleaning heads and self-developed control systems, and is equipped with multiple safety alarms and active safety power and light cut settings. It is developed on the basis of the hand-held welding heads that our company has mass-produced, and has the characteristics of high reliability and strong stability.

Machine Details

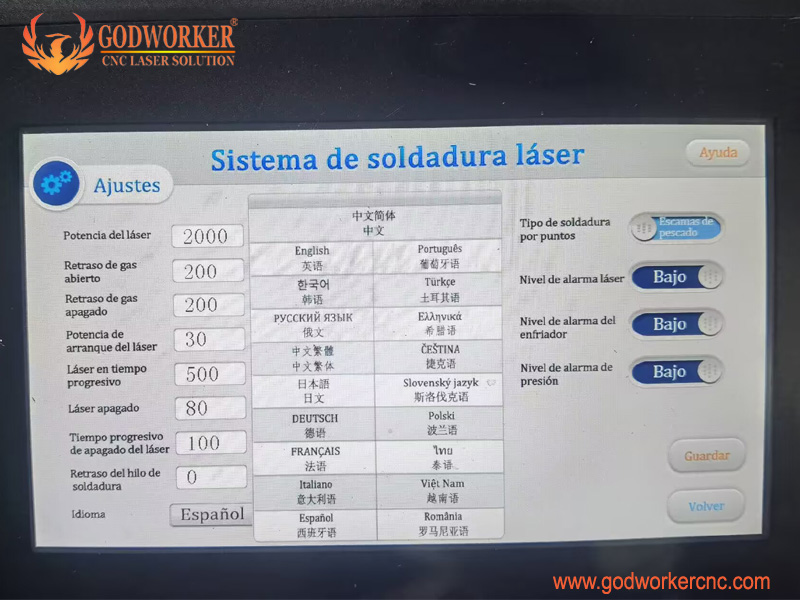

Control panel: Dedicated intelligent control system with multiple language support, multiple security alarms and switchable working modes.

Fiber Laser Source: Adopting famous brands Raycus / JPT laser generator, the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.

Portable handhold welding head: Portable handhold welding head is the biggest character of the machine. Instead of the fixed welding head,it offers so much welding convenience for welding.



Water chiller: One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.

Control cabinet: RelFar control board, power supply, voltage filter, schneider breaker.

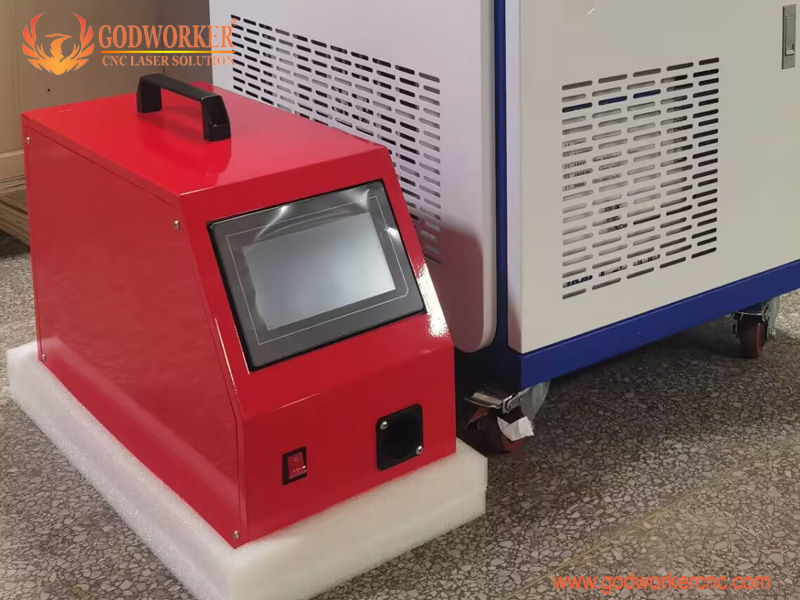

Wire auto feeder:

Spare parts: protect lens, welding nozzles, feeder nozzles, focus lens, etc.

Package:
