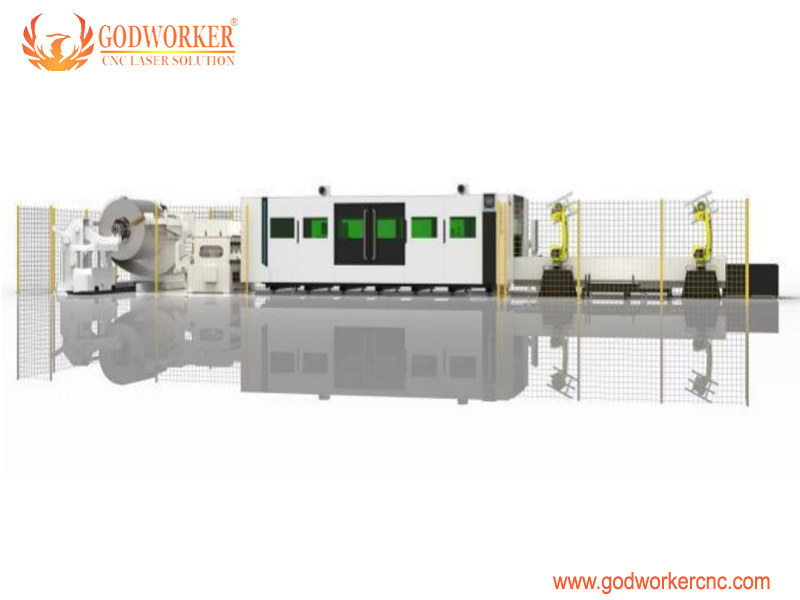

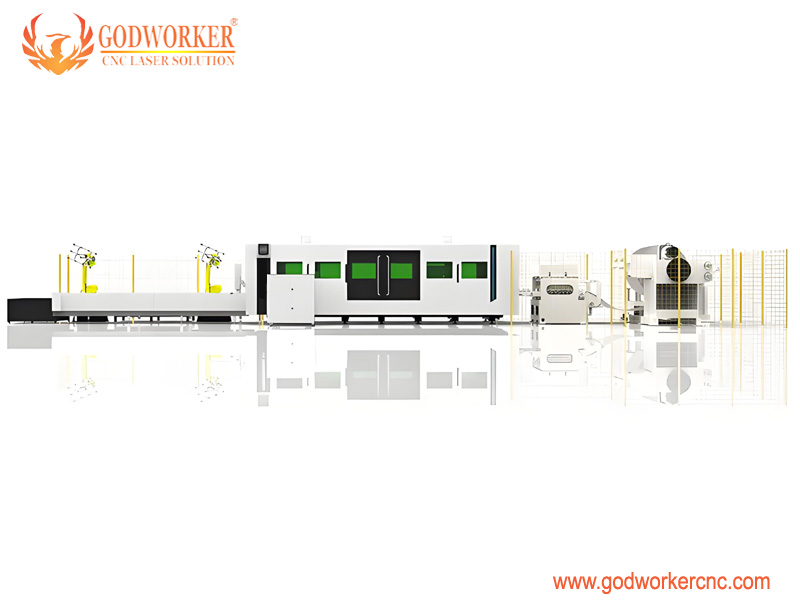

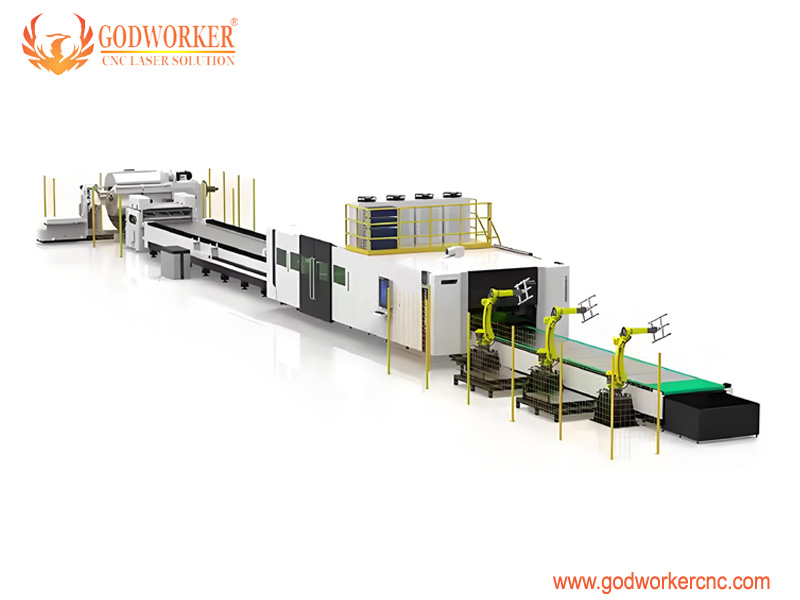

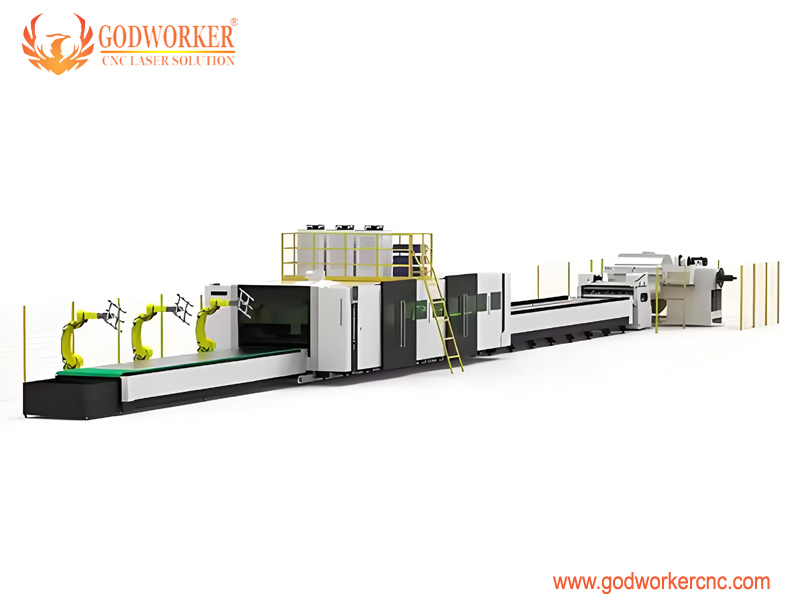

The entire set of unwinding and feeding production equipment using laser cutting technology consists of a loading trolley, an unwinding machine, a leveling machine, a buffer sleeve, a servo feeding machine (if a servo leveling and feeding integrated machine is used, it can replace the previous leveling machine and buffer sleeve to reduce the footprint), a laser cutting device, a cutting platform, a palletizing device, a waste disposal system, a hydraulic pneumatic system, and an electrical control system. The laser cutting head controlled by the system performs three-dimensional motion cutting on the laser cutting platform, replacing the press and mold, to achieve automatic feeding of metal strip materials. The automatic feeding system for coil unwinding and leveling has demonstrated extremely high stability and reliability. It can adapt to coils of different materials and thicknesses, ensuring precise and error free unwinding, leveling, and feeding processes. At the same time, through an intelligent control system, precise control of feeding speed and leveling force has been achieved, further improving cutting quality and production efficiency.

Roll material laser cutting machines are widely used in various fields such as automobile manufacturing, aerospace, shipbuilding, home appliance manufacturing, and building decoration. Especially in situations where large quantities and high-precision cutting are required, its advantages are particularly evident. For example, in automobile manufacturing, laser cutting machines can efficiently cut complex shaped components such as body coverings and structural parts, greatly improving production efficiency and product quality.

● Accurate leveling to ensure cutting quality
The coil unwinding and leveling automatic feeding system is an important component of the fully automatic coil laser cutting production line. It is responsible for unwinding, leveling, and automatically feeding coil shaped metal materials to the cutting area. The emergence of this system effectively solves the problems of low efficiency and insufficient accuracy in traditional manual unwinding and leveling processes.
● Low equipment investment
Compared with existing large-scale material cutting production equipment, laser cutting material cutting production line equipment has lower quality, lower energy consumption, and does not require complex equipment foundations, greatly reducing initial investment and later maintenance costs;
● High output efficiency
Compared with existing laser cutting equipment, the laser cutting material production line uses coil material for billet production, replacing the production process of slicing the coil material first and then cutting it on the equipment, which improves production efficiency;
● High flexibility
No need to manufacture molds, using advanced layout software and control systems, product specifications and shapes can be quickly converted, suitable for various batch production of products;
Low maintenance cost
Using reliable fiber lasers with low maintenance costs; At the same time, the laser cutting speed is fast, with a cutting speed of 55-60 meters per minute (when the thickness is 1mm), which can quickly complete cutting and cutting;
● High product quality
Adopting high-precision leveling machines, high-precision feeding and cutting systems, advanced automatic palletizing systems, etc., it can adapt to the production of various metal material parts blanks;
Low cost of use
Due to the absence of stamping molds, the cost of mold manufacturing and maintenance has been reduced; Moreover, the equipment does not significantly reduce the energy consumption and environmental noise of large-scale press machines;
● High material utilization rate
Because continuous production is carried out using coil materials, there will be no loss of material heads and tails when producing a single piece; At the same time, the equipment adopts optimized layout, combining various shapes of parts for edge free cutting, reducing material loss and improving material utilization.

Laser Cutting head (Raytools / Boci):

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time. Auto focus save time for operator, easy to learn.

Laser Source(Raycus / MAX / IPG): Different brands, different laser power are available.

CYPCUT Control System: Easy operate, also has auto edge seeking function and flying cutting function, Intelligent typesetting etc functions.

Yaskawas servo motor and Motoreducer: High power motor system on X, Y, Z axis. High precision give better cutting effect, high speed give faster cutting speed.

Roller moving table: Easy for metal sheet move forward or backward. Protect material surface.

Electric decoiler

Automatic feeding machine (optional)

Maximum width of roll (mm): 1300/1500/2000/2500

Maximum weight of coil (T):5/10/15/20

Minimum thickness of roll material (mm):0.5/0.8/1

Maximum thickness of coil (mm): 0.8/1/1.5/2 mm

Levelling and beading function

Leveling method: Sheet straightening device/Straightener calibrator (15 roll)

Leveling rod diameter (mm): 80/100/120/150

Leveling accuracy (mm): ±0.5

Leveling roller (support): 9~19

Material rack weight (T): 6.5

Receiving table: High stability, Follow-up design to improve safetyhigh degree of automationWide range of applications.
