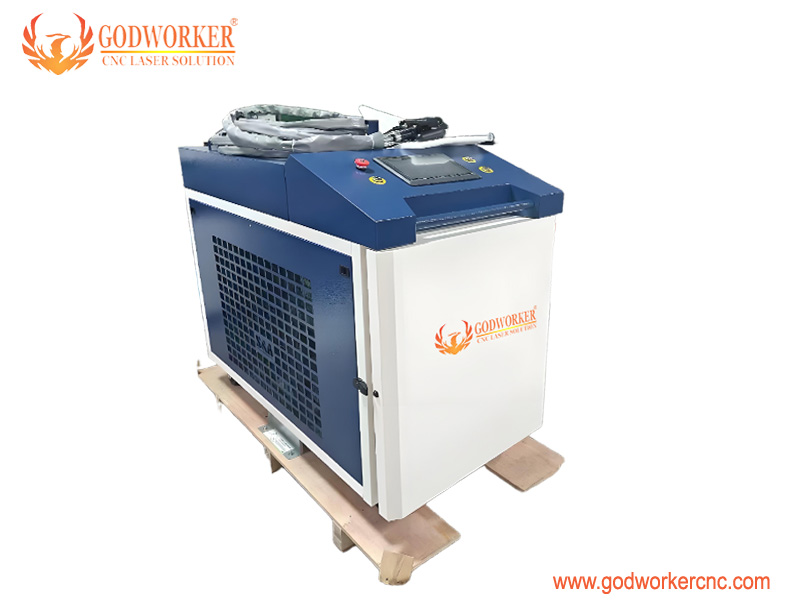

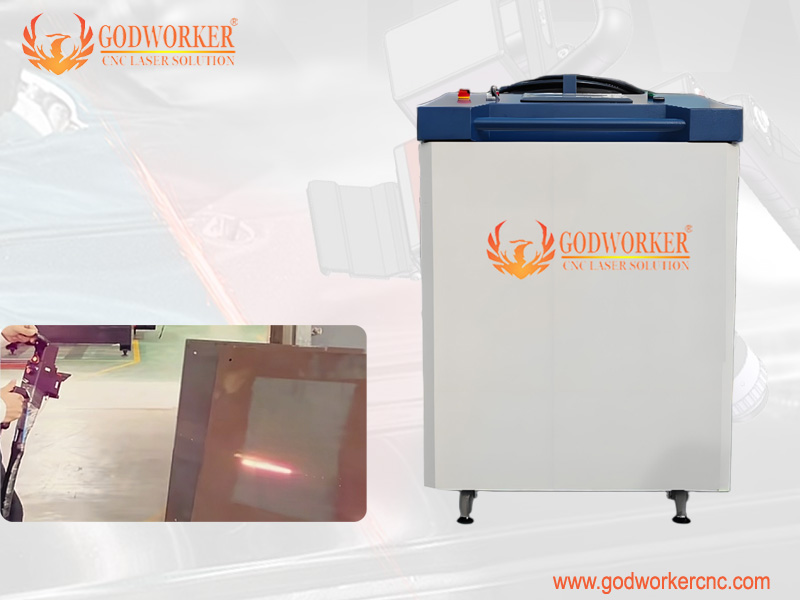

6KW Continuous fiber laser cleaning machine


6KW Continuous fiber laser cleaning machine


Equipment introduction

Laser cleaning machine is a new generation of high-tech products for surface treatment.It is green and environmentally friendly.

It can evaporate or peel off the dirt, rust or coating on the surface, and effectively remove the attachments or surface coatings on the cleaning object at high speed to achieve the cleaning object. Process. The laser cleaner is easy to install, control and automate.

It is easy to operate and can remove resin oil stains, stains, dirt, glue, rust, decoating, deplating and paint on the surface of objects.



Features:

  • High cleaning efficiency: Handheld laser cleaning machines can quickly remove rust, paint, oil and other contaminants from the surface of various materials.
  • Precise cleaning: It allows for precise control over the cleaning area and depth, enabling the removal of unwanted substances precisely.
  • Environmentally friendly: Laser cleaning is a non-contact and does not damage the parts substrate, producing no secondary pollution and being more friendly to the environment.
  • Easy to operate and portable: Simple operation interfaces that can be easily mastered by operators. Handheld design makes them highly portable, weight 1.2kg.
  • Precise cleaning: can achieve selective cleaning of precise position and precise size;
  • Maintenance: The laser cleaning system is stable, no consumables and requires almost no maintenance.

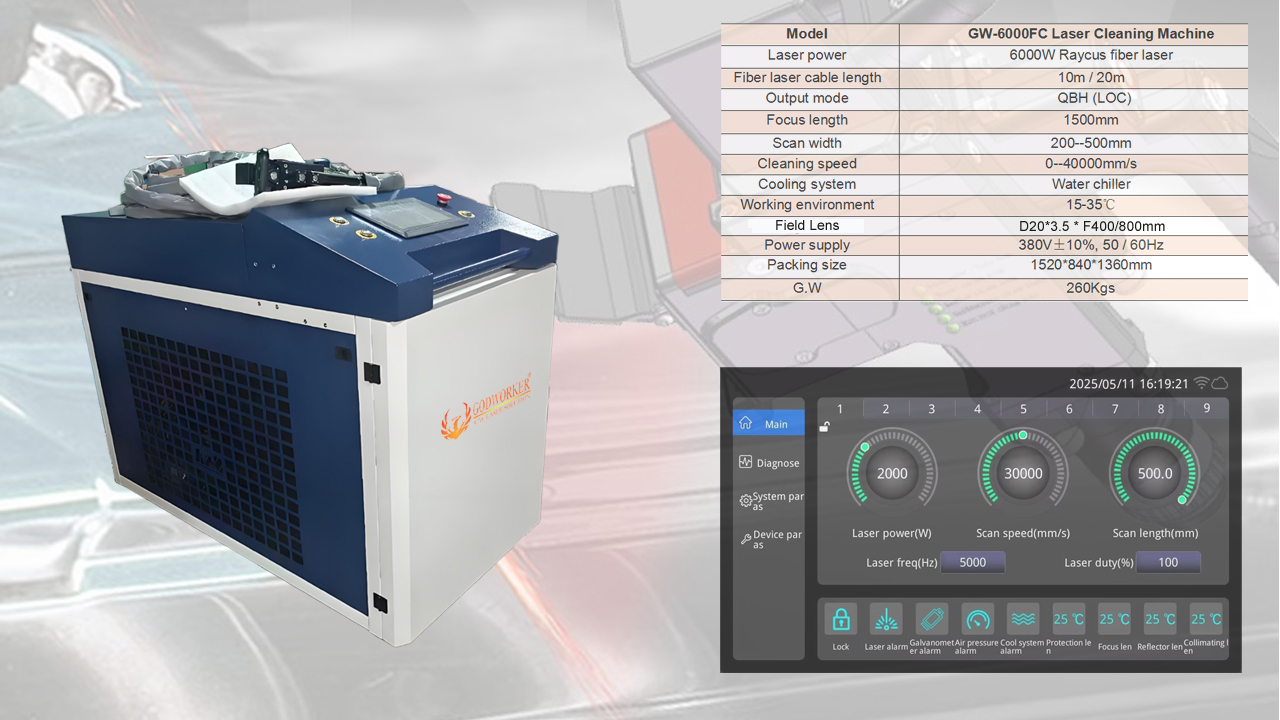

Technical Parameters


Model

GW-6000FC Continuous Fiber Laser Cleaning Machine

Laser power watts

6000W Continuous fiber laser (Raycus / MAX / JPT / IPG)

Power adjustment rate

10-100%

Laser wavelength

1080nm

Scanning width

200--500mm

Fiber cable length

10m -- 20m

Frequency

20--50Khz

Cleaning head weight

1.2kg

Working method

Manual / Auto

Cleaning efficiency

90--160m3/h

Cooling method

water cooling CWFL-6000ENW12

Move method

Hand/push (can be customized according to actual conditions)

Voltage

3 phase 380V, 50/60Hz

Total watts

4000W

Stall environment

Level, No vibration, no impact

Working Temperature

15℃~35℃

Working Humidity

≤80%

Packing size

1520*840*1360mm

N.W / G.W

200KG / 260KG

Samples of Fiber Laser Cleaning Machine

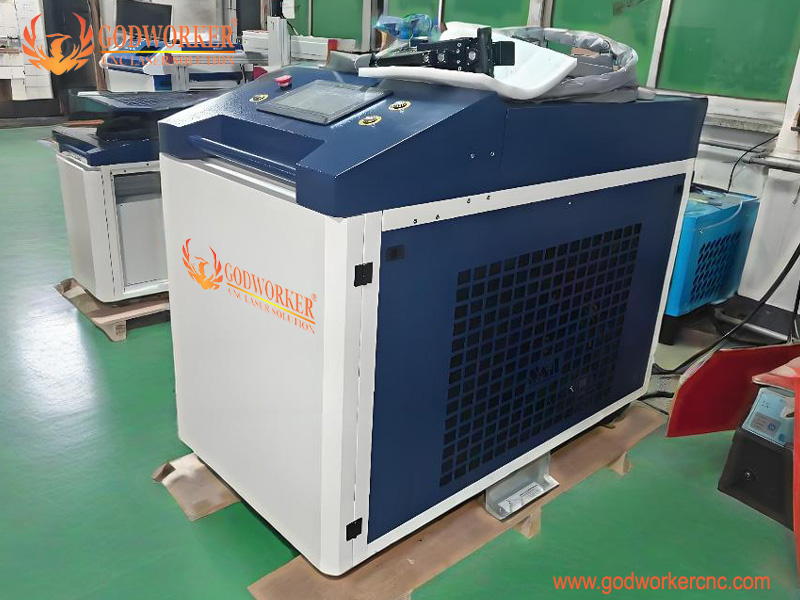

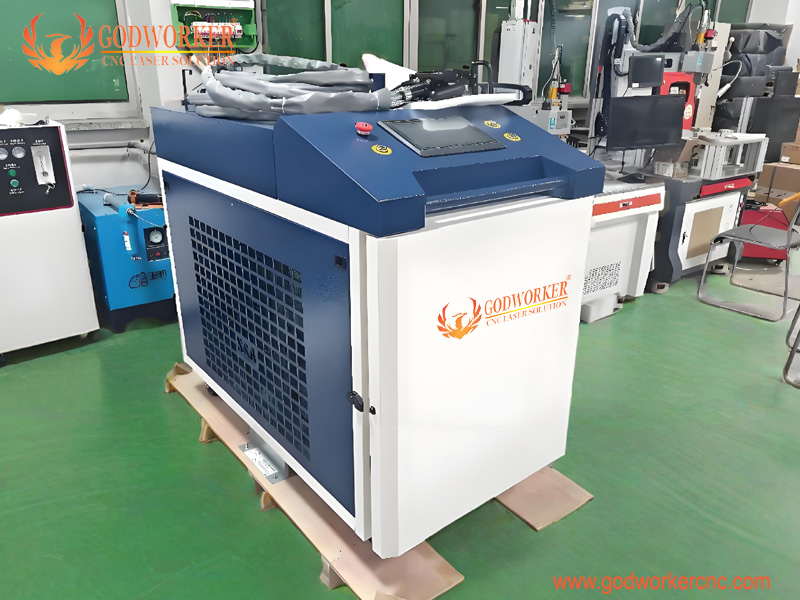

Machine Details

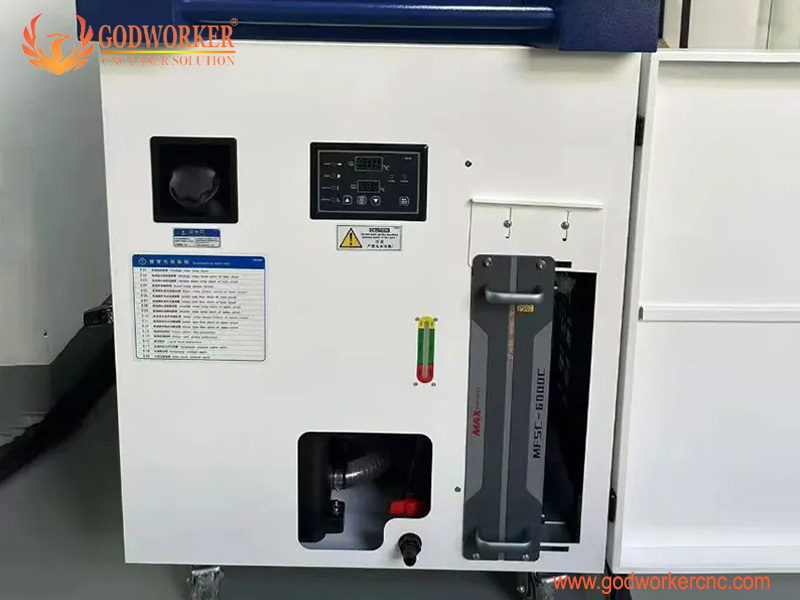

Fiber Laser Source: high system integration, maintenance-free, high reliability. The laser power is continuously adjustable, has high beam quality, and has high laser stability, which is an ideal laser source for laser fine cutting, precision welding and other applications.

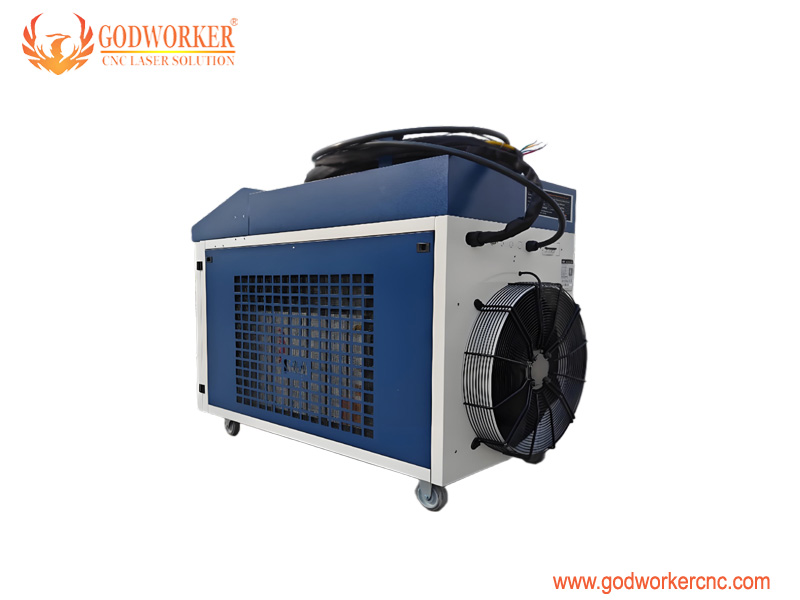

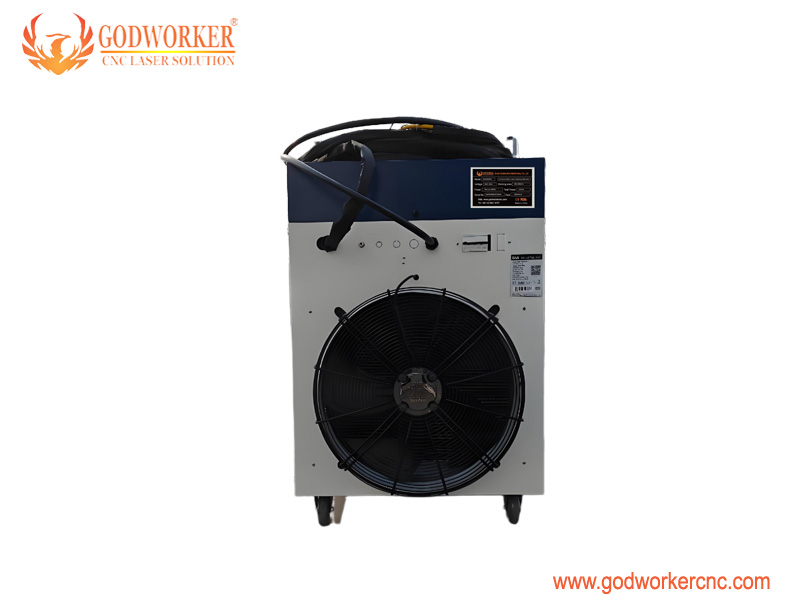

Industrial Chiller: laser generator is cooled by water circulation, and the temperature of the laser generator is accurately controlled, so that the laser generator can maintain normal operation for a long time.

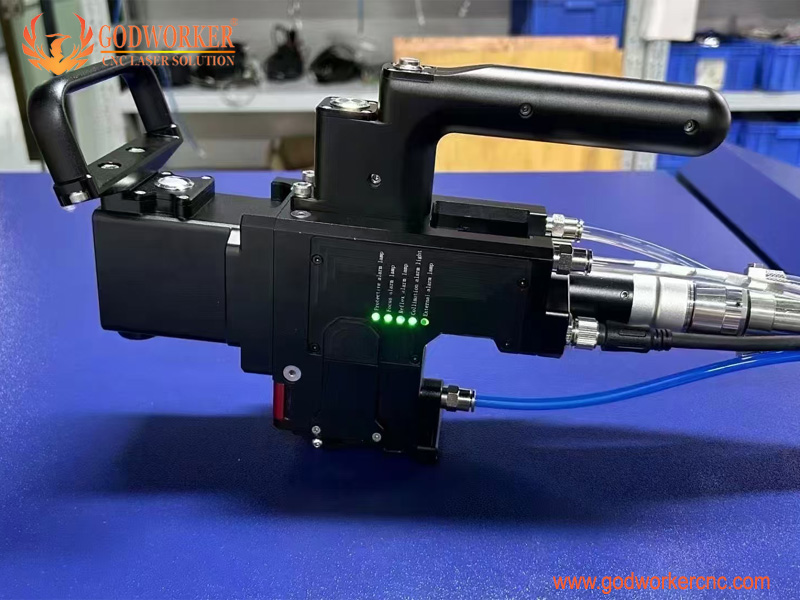

Relfar laser cleaning head: FWH60-C30A Using a hand held cleaning gun design, it can fexibly respond to vanious objects and angles.Easy to operate and portable move.

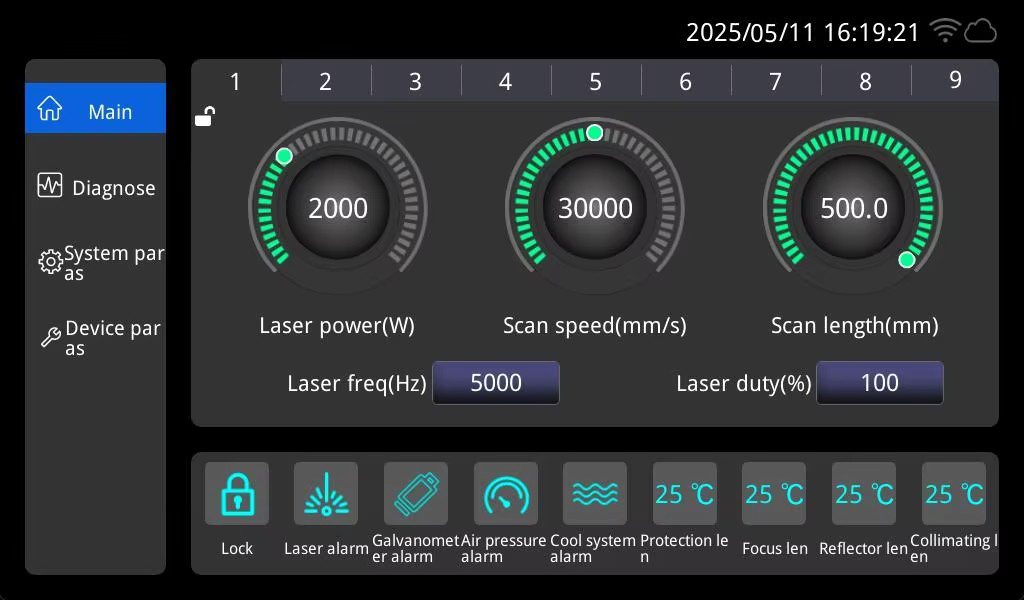

Touch screen and control panel: Strong compability. Multiple light emission modes.Maintenance free, and lang service life. Support mobile app control.



Machine accessories: Protect mirrors + clean cotton swab + Ruller + Goggle + Spanner.
