Portable Fiber Laser Marking Machine 30W 50W 60W JPT IPG RAYCUS

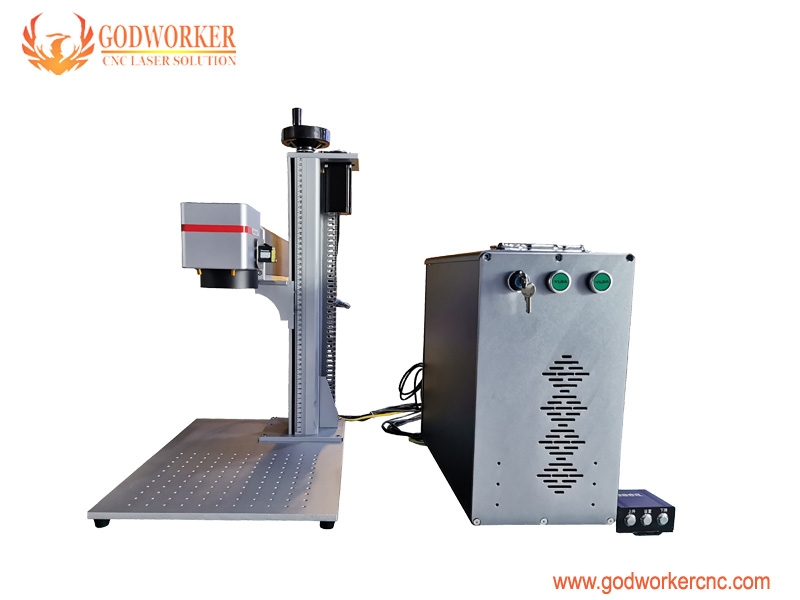

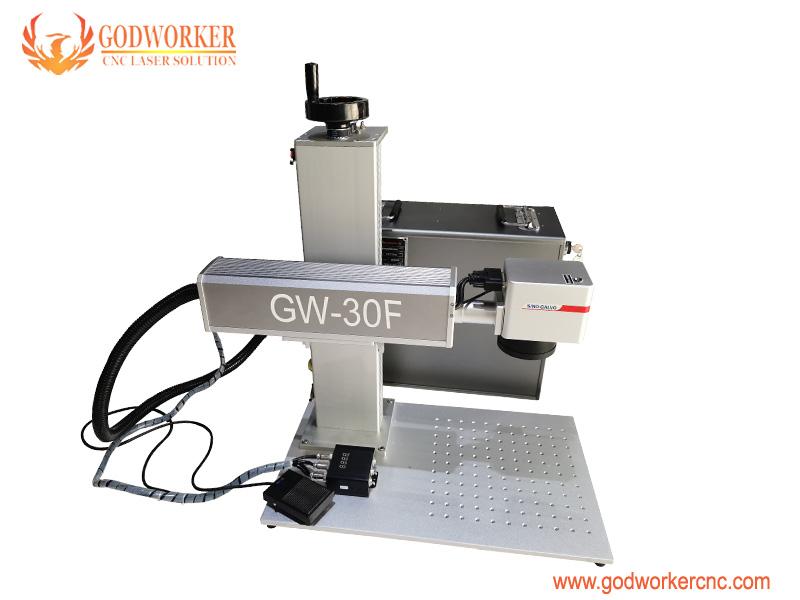

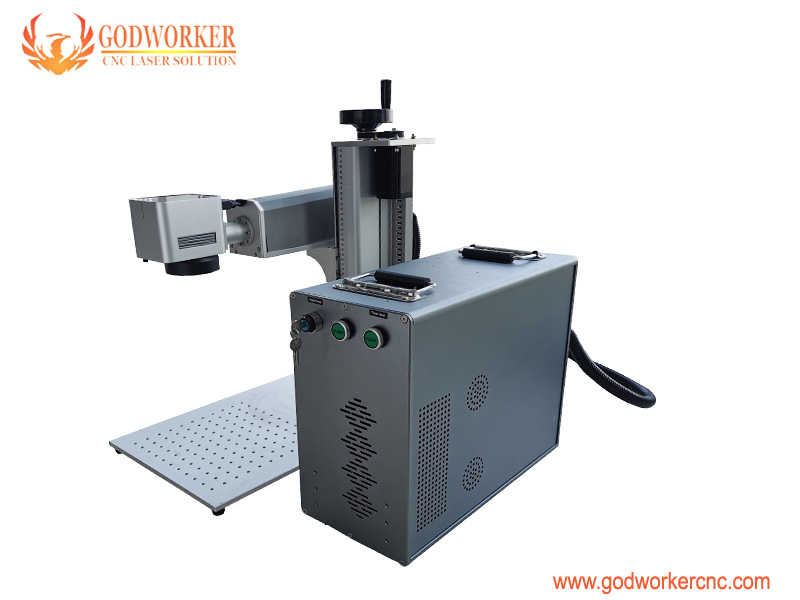

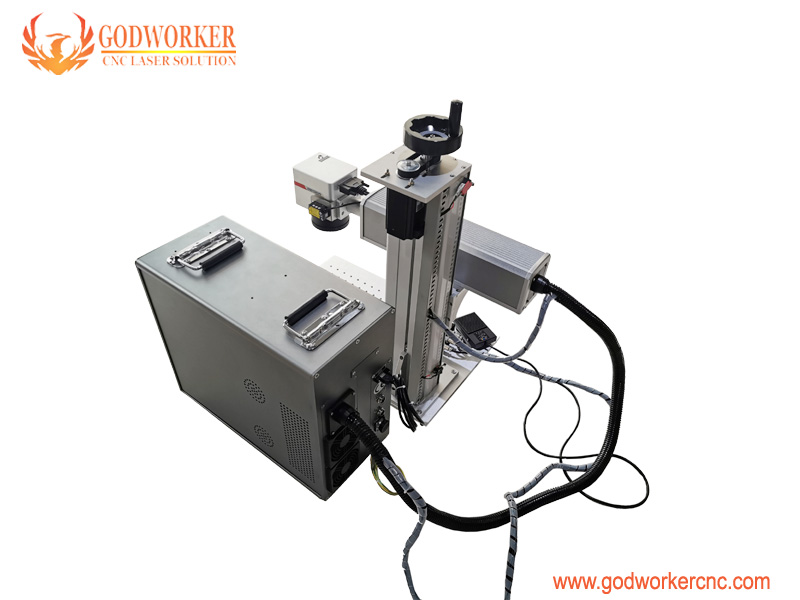

Portable Fiber Laser Marking Machine 30W 50W 60W


Features:
1.The high-tech product, which is combined of laser device, computer, auto controller and precision Machinery.
2.High Precision: Re-position precision is 0.002mm.
3.High Speed: Adopt SINO scanning system makes speed upto 8000mm/s.
4.Easily Operating: Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the specific coding software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5.High Reliability: Fiber laser model has 80,000 - 100,000 hours working life. Dont need maintenance during this period.
6.Energy Saving: The efficiency of optic-electrical converting is up to 30%.
7.Low Running Cost: No wearing part, Free maintaining.

Applications:
Such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and also can mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon. It can mark color, black, white and gray on stainless steel. It's very popular in marking iPhone cover, shell and Jewelry.

Technical Parameters


Model

GW-60F Portable Fiber laser marking machine

Laser device

JPT MOPA M7

Central emission wavelength:

1060-1070nm

Average output power

60W

Beam Radiation Angle

≤2mrad

Modulation frequency range

1KHz~4000KHz

Pulse Duration

2~500ns

Beam Quality

M2:1.2-1.8

Marking Depth

>0.5mm (depending on the materials)

Maximum speed

8000mm/s

Resolution

0.001mm

Repeat location accuracy

0.003mm

Emission Bandwidth (FWHM)

<10 nm

Long-term average power instability

<5%

Laser switching ON/OFF time

180 μsec

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Galvanometer

SINO SG7110 high speed Galvo

F-Theta lens

Wavelength

Working area

175*175mm

Working stability (8h)

±1%rms

Minimum line width

30um

Minimum character height

0.2mm

Sheet label marking time

≤ 90 s (depend on the content)

Control board

BJ-JCZ, USB interface

Consume Power

<900W

Cooling mode

Air cooling

The Max input power

220V 50/60Hz

Environmental Requirement

0~35°C,humidity≤90%

Graphic Format Supported

bmp,jpg,gif,tga,ai,dxf,dst,plt,etc.

Warranty

3 years for machine, 2 years for laser source

Delivery time

3 working days

Packing size

770*480*780mm

G.W

53KGS

Samples


Machine Details


Fiber Laser Source: adopt top brand JPT MOPA M7 fiber laser source, like: Raycus, IPG, SPI for option as you prefer.

Galvo: adopt SINO SG7710 high speed galvo with auto focus sensor, if you prefer also can option Germany SCANLAB Galvo.

Lifting: Motorized lifting can auto up / down to adjust focus distance, more convenient.

Control switch:  Adopt high quality Yijia brand buttons, humanized control, easy operate.

Control cabinet: JCZ control card + MW power supply + Fillter + PC.

Machine back side: connect interface and power plug.

Machine accessories: User Manual, S.S Ruler, Power Cable, Foot switch, Goggle, software U-disk, spanner, etc.

Machine package:

Optional Config



FAQ

Q: What are the consumables of the fiber laser marking machine?
A: Mainly electricity, basically no other consumables.
Q:How long is the working life of the machine?
A: Laser source life time is 100,000 hours. 8h/day, can use 12500 days, 24h/day, can use 4166 days.
Q: Can I get some discount if I order more ?
A: Yes, more sets more cheaper.
Q: How long your machine can be shipped?
A: When you confirmed the order and transfer the deposit, 3 working days for the small order, 10~15 days for the bulk.
Q: Can you offer me OEM service?
A:Yes,However,you should give me more request and info as you can.
Q: How to choose most suitable machine?
A: 1. Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
 2. What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
 3. How big working area you need?
4. or Please provide a photo of the product you used before or advise us your needs, we will give suggestion.
Q: What's your MOQ?
A: MOQ 1 set. If more, we can talk about discount. You can mix it with other laser machines or parts shipping together .
Q: What is your terms of payment ?
A:  30--100% in advance by T/T in advance, balance before shippment.
Q: Can I get a sample to check the quality ?
A: Yes, we are glad to offer you sample for test, And there is a discount for Trade Assurance Sample Order.
Q: If there is any technical help after we receive the machine?
A: Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
Q: If there is some problems for parts during warranty period, will your company repair or replace for me?
A: Yes, we will. Please send the main part back to our company, we will repair and send  back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free.  PS: Not including the consumable parts and Man-made damage.
Q: Will the machine will send to my door?
A: 1. Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you  find broker help you to do customs clearance ).
2. For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
Q: Can I buy spare parts from your company if I have spare parts in the future?
A: Yes, please. Our company supply spare parts for all of our machine.
Q: Give me reasons to chose your company ?
A: 1.Professional factory with competitive price;
2. High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine.
3. Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4. Strict implementation of after-sales warranty.
5. The important is that you will receive the corresponding goods after you do payment.
