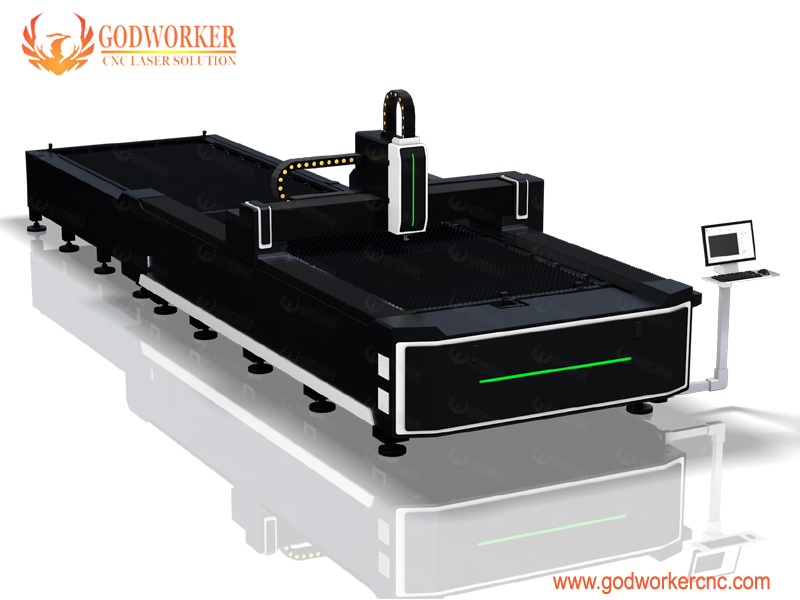

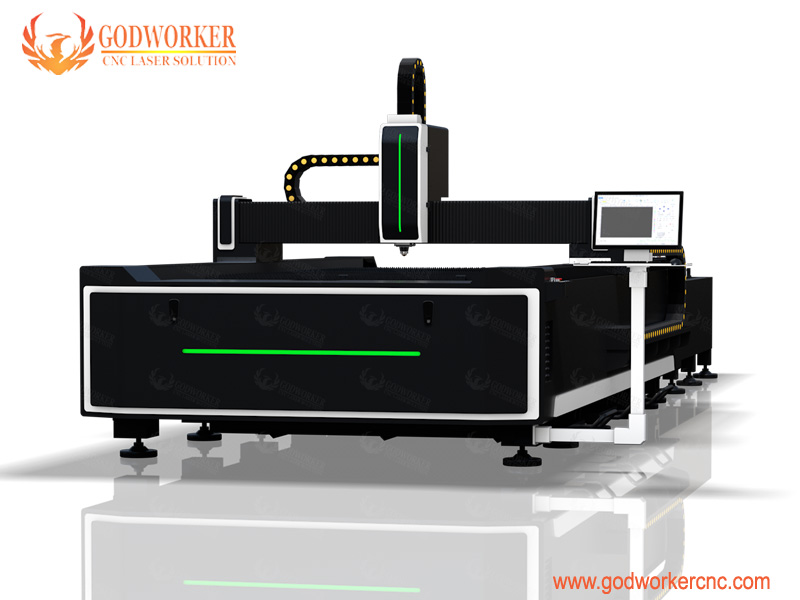

3015 Fiber Laser Cutting Machine with Exchang Table


3015 Fiber Laser Cutting Machine with Exchang Table


Equipment features:
1. Stability and reliability of light path system and control system.
2. Humanizing design, convenient operation.
3. Ultra low cost, low operating cost, laser consumes only 0.5-1.5kw/h.
4. High performance and low use-cost; imported fiber laser of the original factory packaging, stable performance, the service life of up to more than 100 thousand hours.
5. High cutting efficiency and quality, no noisy, high cutting speed and efficiency, Cutting speed is up to dozens of meters per minute when cutting sheet. Less deformation, smooth appearance and beautiful, cutting edge is high at quality.
6. High precision Yaskawa servo motor, PMI Linear Rial and YYC Gear Rack imported ensure the efficiency and accuracy, increasing the stability and reliability greatly.
7. The exchange table makes for fast loading and unloading while the fiber cutter is already cutting your next products. The roller balls enable easy loading of full metal plates up to 300 x 150 mm., and the open design also makes the laser machine easy to unload. Ideal for smaller workshops.

Application Industry:
Fiber laser cutting machine has been widely used in sheet metal cutting and processing, house electrical appliances manufacturing, Precision parts , decoration and advertisement.It is your best choice for cutting stainless steel, carbon steel , mild steel and sheet aluminum.



Technical Parameters


Model

GW-3015FG

Working Size

3000x1500mm

Laser Type

IPG / RAYCUS Fiber Laser Generator

Laser Wavelength

1080nm

Laser Output Power

2000W

Cutting Thickness

< 20mm

Laser Head

Raytools auto focus cutting head

Max Cutting Speed

0-700mm/s

Position Accuracy

<±0.01mm

Minimum Line width

<0.12mm

Working mode

Continues

ACC speed

0-4000mm/s^2

Working speed

0-350mm/s

Working ACC

0-2000mm/s^2

Cooling System

TF Industry chiller

Driving System

Japan Yaskawa Servo motor and drivers

Transmission

Taiwan PMI Linear Rail + YYC gear rack

Reducer

France MOTOREDUCER

Electric parts

France Schneider

Acceleration

1.5G

Working table max loading

>800kgs

Working table

Automatic exchange table

Power Adjustment

0-100% controlling,  (0-100% adjusting by software)

Aiming Position

Red-light position

Blowing System

Cabinet exhaust fan

Minimum Character

Chinese character 2.0mm, crisscross-row 1mm

Working Environment

Temperature: 0-45°C, Humidity: 5%-95%

Noise

<65Db(not include exhaust fan noise)

Lubrication system

Auto

Software

CYPCUT

Graphic support

AI, BMP, PLT, DXF, DST, etc

Protection level

IP54

Working Voltage

380V; 50Hz/60Hz

Machine whole power

25KW

Machine weight

8.5 Tons

Size L*W*H(mm)

8150*2325*2125mm

2000W Cutting Parameters

Material

Thickness(mm)

Speed(mm/s)

Pressure(MPa)

Gas

Height(mm)

SS

0.5

>650

1

N2

0.6



1

600

>1.1

N2

0.6



2

200

>1.5

N2

0.6



3

100

>2.0

N2

0.6



4

70

>2.0

N2

0.6



5

40

>2.0

N2

0.6



6

25

>2.0

N2

1



8

15

>2.0

N2

1

CS

1

200

1

O2

1



3

70~80

1

O2

1



5

50~55

0.5~0.8

O2

1



6

35~45

0.25~0.4

O2

1



8

20~30

0.15~0.2

O2

1



10

18~25

0.15~0.2

O2

1



12

16~20

0.10~0.15

O2

1



14

15~18

0.10~0.15

O2

1



16

13~15

0.10~0.15

O2

1



18

10

0.10~0.15

O2

1

Aluminum /

Brass

1

250~280

>1.1

N2/Air

0.8



2

120~140

>1.5

N2/Air

0.8



3

55~65

>2.0

N2/Air

0.8



4

20~25

>2.0

N2/Air

1



5

15~20

>2.0

N2/Air

1


Samples


Machine Details

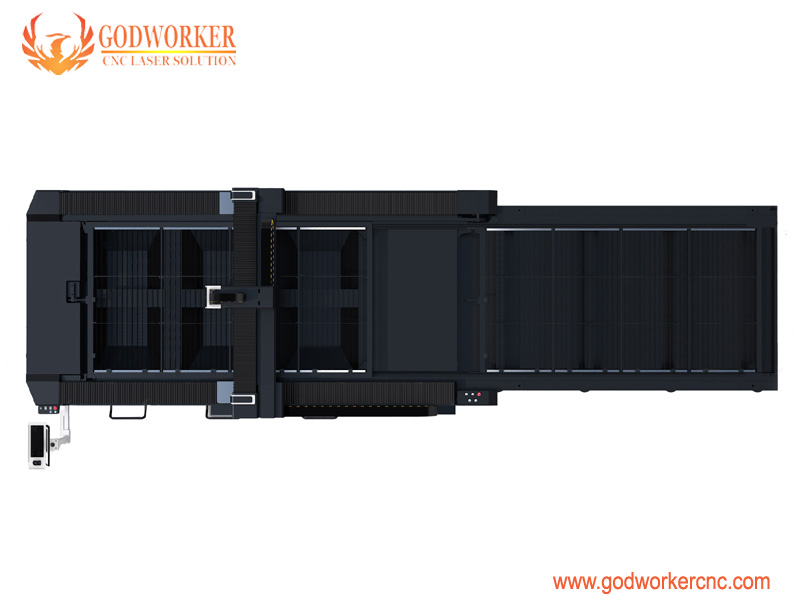

Auto Exchange table: makes for fast loading and unloading while the fiber cutter is already cutting your next products.

CYPCUT Control System: Easy operate, also has auto edge seeking function and flying cutting function, Intelligent typesetting etc functions.

Fiber Laser Source: Raycus / JPT / IPG for option, base on materials and thickness can choose match watts fiber laser source, like: 1000W, 1500W, 2000W, 3000W, 4000W, 6000W etc.

Raytools cutting head:

Machine transmission and other parts:

Products Package


Warranty


Service Fiber Laser Cutting Machine:

1. Warranty 3 years warranty for machine, 2 years for laser source. Our customer will be fully trained for the operation and maintaining technology after the order confirmed. 12-hour after sales service: our skilled engineer will help customer to solve the problem by Wechat or Whatsapp or Online remote assistance in time when problems happen. If necessary, our engineer can go oversea door to door services.

2. Quality Control Skilled and strict quality inspection team is available during the material purchasing and production procedure. All finished fiber laser cutting machine, we delivered are 100% strictly tested by our QC department and engineering department before shipping.

3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc. MOQ required 3 sets.

4. Privacy all of your personally identifiable information (such as your name, address , email address, bank info, etc ) wont be disclosed or shared with any third parties.

5. All of your inquiries, questions or problems will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.

6. Payment Terms30% T/T paid in advance, the balance paid before shipment. Accept Credit card, Alibaba Trade Assurance.

7. International Shipping: by sea, by air or by international express logistics ( DHL, FEDEX, UPS, TNT).

8. Get a free quotation by filling up the form with your name, email, detailed address, product and requirements, we will contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.



FAQ


Q: What's the materials fiber lase cutting machine can cut?

A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, alloys, etc. With rotary machine can cut metal pipe and tube. This type machine is designed specially for those customers who need one machine to cut both metal sheet and metal pipe.

Q: How long is life time of fiber laser cutting machine?

A: Averange life time of fiber laser source is 10 years, warranty 3 years. Average life time of cutting head is 8 years, maximum is 10 years.

Q: What's the max cutting thickness of fiber laser cutting machine?

A: Cutting thickness depend on laser power and metal materials.

1000W: 4mm stainless steel, 12mm carbon steel, 3mm aluminum, brass;

1500W: 6mm stainless steel, 16mm carbon steel, 6mm aluminum, 5mm brass;

2000W: 8mm stainless steel, 20mm carbon steel, 8mm aluminum, 6mm brass;

3000W: 10mm stainless steel, 22mm carbon steel, 10mm aluminum, 8mm brass;

6000W: 16mm stainless steel, 30mm carbon steel, 16mm aluminum, 10mm brass;

Etc........

Q: Can we use air to cut metal?

A: Yes customers usually use compressed air to cut stainless steel under 3mm thickness. We could install 11kw 1.3mpa air compressor together with machine.

Q: Can you arrange shipment?

A: Yes we have stable forwarders, which could deliver machine to destinations overseas by sea/ land/ air. Also you could use your own forwarder to ship machine.

Q:How to place a order ?
A: After you confirmed order details and decided to purchase our machine, we would make and send you Proforma Invoice.
Pay 30--50% deposite in advance. Then we arrange production of machine. Sometimes there are machines in stock. After finished tested the machine, will take cutting sample videos for you confirm.
When you confirmed machine has excellent performance. We would inform you to make balance payment.
Will cleaning and packing machine, shipping to loading port.

Q:Can you guide us to install and operate machine ?
A: Yes, when you received the machine, in tools box has user manual and video guide you how to install and assemble, operate and maintain. At the same time our engineer will online services for helping.
