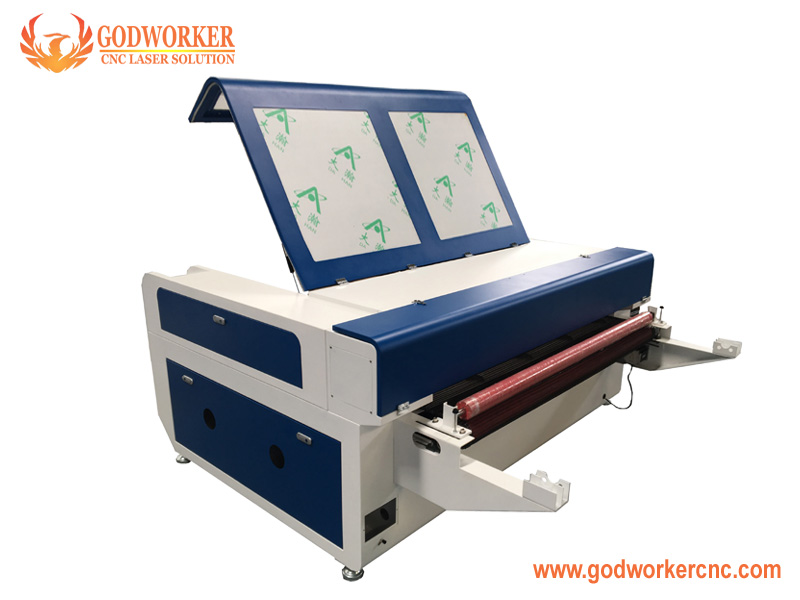

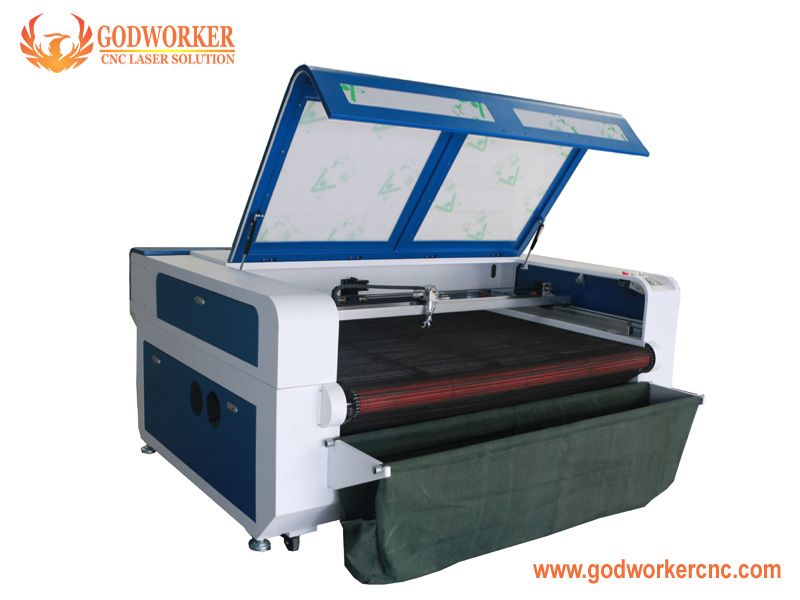

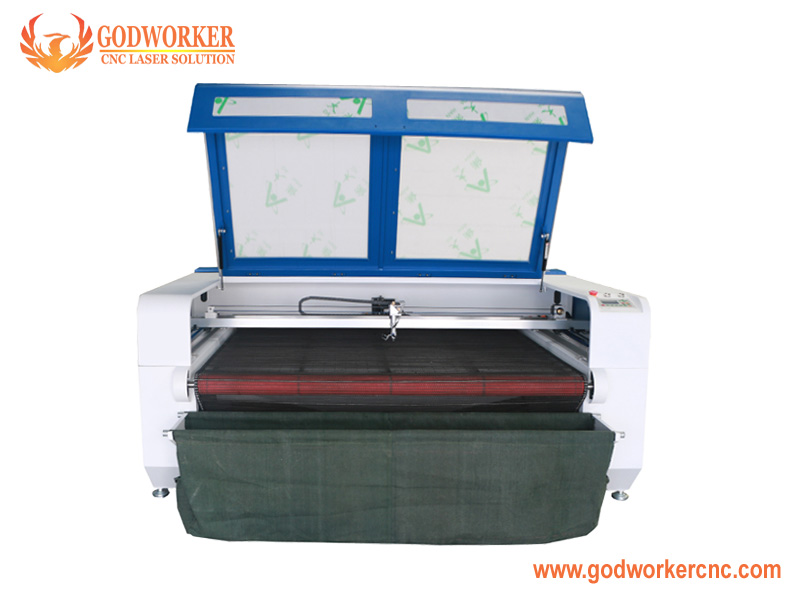

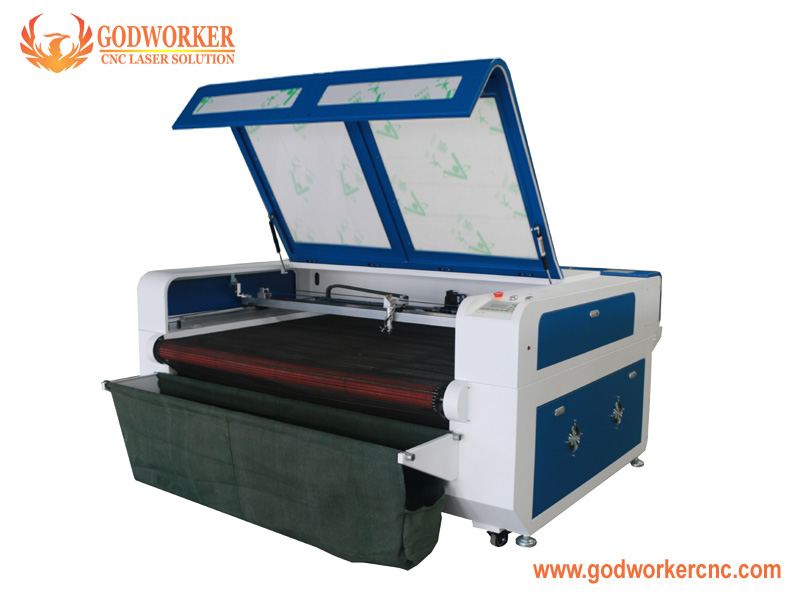

1610 Auto Feeding Fabric Laser Cutting Machine


1610 Auto Feeding Fabric Laser Cutting Machine


Features:

1. This machine adopt crawler working table and negative pressure absorb conveyor, make sure the smooth of materials when cutting. Working with auto feeding system, can meet the requirements for continuous and automatic batch cutting.
2. This machine adopting high speed, high precision stepper motor, automatic feed, automatically capture the border and cutting speed is 2.5 times than of the traditional, which is the best choice of modern high-speed fully automatic large enterprise.
3. It can cut via any curve fast and consecutively. the laser heads moving in beautiful arc just evoke your imagination of top grade racing car
4. Ruida controlling panel support various languages and clear display,more convenient operation.
5. Can install multiple laser heads, improve work efficiency.
6. Open-type wide area laser cutting bed. Various working areas optional.
7. Vacuum absorb conveyor working table with auto-feeding device, it is capable of fast and continuous cutting of textile fabrics.
8. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding & cutting.

Application Field: Suitable for cutting a variety of textile and industrial fabrics.

1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, PVC fabric, sponge, insulating material and other industrial flexible materials.

2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Clean room Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.

3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.

4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.

5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dust-proof cover, seat belt (safety belt), etc.

6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, PTFE, ETFE, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, tents, fire balloon, parachute, paraglider, para-sail, rubber dinghy, canopy, awning, etc.

7. Fur coat, Fur layer, PU leather, leather, etc.

Technical Parameters


Model

GW-1610CA fabric auto feeding laser cutting machine

Engraving and Cutting Area

1600*1000mm

Tube type

10.6um CO2 sealed glass tube (Yongli / RECI)

Laser Power

80W / 100W / 130W / 150W / 180W for option

Cooling

Water chiller CW3000 / 5000 / 5200 / 6000

Engraving Speed

0-75,000mm/min

Cutting Speed

0-40,000mm/min

Reposition Accuracy

±0.01mm

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Resolution

4,000 dpi

File output mode

2.0 USB interface

Machine Power

<3200W

Support Format and Software

PLT,DST,DXF,DWG,AI,AutoCAD,Coreldraw, RD Work

Working Environment Temperature

0-45°C

Feeding system

Rubber conveyor feeding system + collector bag

Drive system

Stepper motor + YAKO Drivers

Control system

Ruida 6445G control system

Exhaust smoke system

550W exhaust fan

Working Voltage

110V--220V; 50/60Hz

N.W. / G.W.

600KG / 700KG

Warranty time

2 years for machine (10--18 months for tube)

Package

Standard Exported plywood case with steel

Packing size

3280*2260*1300mm

Delivery time

7--12 working days after deposit payment

Samples




Machine Details


Yongli / RECI CO2 laser tube80w, 100w, 130w, 150w, 180w laser power

Laser head with red dot:

Auto feeding table: auto-feeding function is specially designed for piece goods, such as cloth, fabric,towel, leather, jeans, knit article, embroidery, etc. It's so practical. Widely applied in clothes  industries.

S&A water chiller for laser tube cooling:

Transmission system: PMI Linear Rail + Japan ONK belt + Stepper motor + Omron limit sensor.

Ruida 6445G control panel:

Europe Standard Power plug:

Tool box: Software CD + Tools + Ruler + Glasses + User Manual + keys + spare parts.

Optional Configurations


FAQ


Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machine can both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes. It supports Windows 7 / 8 / 10 and other operating systems.
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. Machine laser tube watts depends on your process materials and its thickness.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: I'm not familiar with the machine,how to choose?
A: Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q: Can the machine be customized according my requirements?
A: Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes. Our tools box has goggle when somebody operate machine, pls wear the goggle.
Q: How can I pay my order?
A: We accept T/T, Alibaba, etc paying methods.
Q. When I got GODWORKER Laser cutting machine, I don't know how to use it. What should I do?
A: 1. We will send you the video and manual with the laser machine.
2. If you still have some doubts, please contact us via Telephone / WeChat / Email / WhatsApp, will answer you within 8 hours.
3. Engineer can remote control your PC guide you how to operate it.
4. If necessary, we will dispatch the technician for in-house service (Installation & Training), but you need pay for some fee, like air tickets, hotel and meal, daily salary.
5. If you can come to China, we will offer you free training until you can use machine freely.
Q: Can you arrange the shipment for us?
A: Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
Q: What's the warranty on the laser cutting machine?
A: 1. Machine has warranty for 2 years, starting from the delivery date (subject to date on nameplate).
2. Glass laser tube warranty for 10--18 months.
3. No warranty in case of damage due to improper handling.

Any further questions, please do not hesitate to contact us, we will service to you at 7×24 hours.
