Handheld fiber laser welding machine 1000W 1500W 2000W Raycus / JPT


Handheld Fiber Laser Welding Machine


Laser Welding Machine Description


1. This machine adopts JPT fiber laser generator, which has high electro-optical conversion efficiency & long laser life;
2. The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional optical fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, and the welding is firm. Smooth and flat;
3.The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;
4. Can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.
5.The hand-held welding gun replaces the previously fixed optical path, and the welding is hand-held, flexible and convenient, and the welding distance is longer, and the limitation of the space of the worktable is overcome, and the work piece cannot be automatically welded when the work piece size is not uniform. Mainly for large work pieces, fixed positions such as inner right angle, outer right angle, flat weld welding, small heat affected area during welding, small deformation, large welding depth and firm welding. It is a relatively flexible new welding process for welding large work pieces at a long distance.
Features:
1. Precise positioning
Optical fiber laser welding machine is equipped with red point, which is convenient to observe and can precisely locate by spot in micro-welding.
2. Uniform weld spot
The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.
3. Suitable for all kinds of weld's screams
Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 3mm. It has fast welding speed, large depth and small deformation.
4. Batch & Mass Production
Optical fiber laser welding machine can customize special automatic fixture to realize mass production of products.
5. Corrosion Resistance and High Temperature Resistance
Fiber laser welding machine uses ceramic concentrator, which can be welded at room temperature under special conditions, such as vacuum or through glass materials, and has simple equipment, corrosion resistance and high temperature.
6. whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs.
Application industry:
water pipe joints, reducer joints, tees, valves, battery industry: lithium batteries, battery packs, laser welding of electrodes, glasses industry: stainless steel, titanium alloy and other materials for the buckle, frame and other positions Precision welding, hardware industry: impeller, kettle, water cup, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, shelf, etc.

Advantages:
1.Hand-held laser welding machine, fixed optical path, flexible and convenient, long-distance laser welding
2.Hand-held welding head is light and flexible, meeting a variety of angles, welding in multiple positions
3.Infrared positioning, the welding position is more accurate, ensuring a more beautiful weld
4.Fast welding speed, easy operation, reduced time and cost
5.Laser welding depth is large, welding is strong, suitable for all kinds of complicated welding

Laser Welding Machine Parameters


Model

GW-1000WD

GW-1500WD

GW-2000WD

Laser type

Raycus / JPT fiber laser

Output power

1000W

1500W

2000W

Power adjustment range

10--100 %

Central wavelength

1080nm

Fiber laser beam quality M²

1.3

Laser turn-on time

50--80µs

Laser turn-off time

30--50µs

Frequency

20--50KHz

Fiber laser cable length

10m (standard is 5m)

Output mode

 QBH (LOC)

Power supply

220V±10%, 50/60Hz, 40A

Machine power

3.2KW

3.8KW

4.5KW

Cooling system

Water chiller

Working environment

15-35℃

Welding thickness

3.5mm

5mm

7mm

Welding speed

0--120mm/s

Packing size

1450*840*1360mm

N.W / G.W

290Kgs / 370Kgs

Delivery time

7 working days

Welding ability thickness
No.
Material
1kw
1.5kw
2kw
1
Stainless Steel
≤3.5mm
≤5mm
≤7mm
2
Mild steel/Iron
≤3.5mm
≤5mm
≤7mm
3
Aluminum/brass
≤3mm
≤3.5mm
≤4.5mm

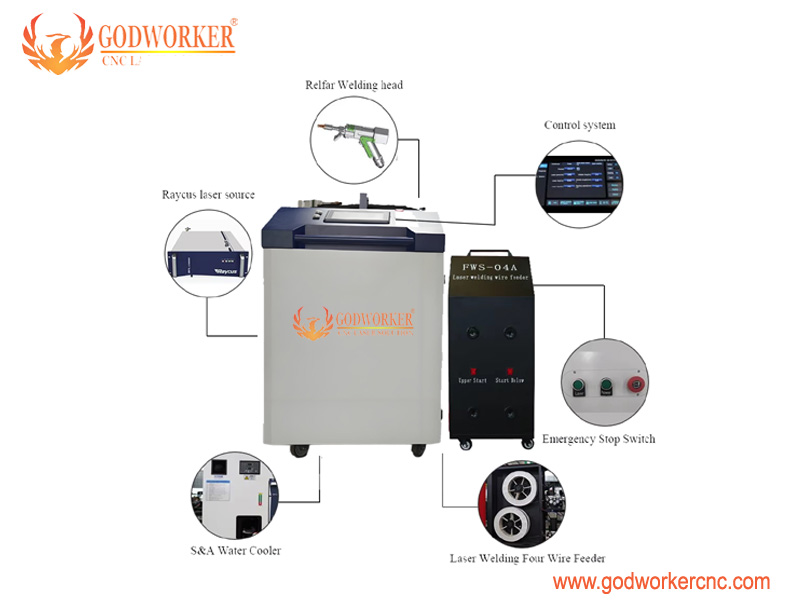

Fiber Laser Welding Machine Details


Fiber Laser Source: Raycus / JPT for option,  like: 1000W, 1500W, 2000W etc.

Control panel: Touch panel, easy modify parameters and operate.

Portable handhold welding head: light weight 0.9kg, more convenience for multi-angles and long distance welding.

Auto feeding welding wire: can fill the welding gap while welding more thickness materails.

Water chiller: inside water chiller that saves machine occupy space. It is constant temperature industrial type.

Welding Nozzles:

Fiber Laser Welding Machine Samples


Service Fiber Laser Welding Machine


1. Warranty 1 years warranty for machine, 2 years for laser source. You will be fully trained for the operation and maintaining technology after the order confirmed. 12-hour after sales service: our skilled engineer will help customer to solve the problem by Wechat Group or Whatsapp or Online remote assistance in time when problems happen. If necessary, our engineer can go oversea door to door services.

2. Quality Control Skilled and strict quality inspection team is available during the material purchasing and production procedure. All finished machines, we delivered are 100% strictly tested by our QC department and engineering department before shipping.

3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc. MOQ required 3 sets.

4. Privacy all of your personally identifiable information (such as your name, address , email address, bank info, etc ) wont be disclosed or shared with any third parties.

5. All of your inquiries, questions or problems will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.

6. Payment Terms30% T/T paid in advance, the balance paid before shipment. Accept Credit card, Alibaba Trade Assurance.

7. International Shipping: by sea, by air or by international express logistics ( DHL, FEDEX, UPS, TNT).

8. Get a free quotation by filling up the form with your name, email, detailed address, product and requirements, we will contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

FAQS


Q: How to operate the machine ?
A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

Q: How can I get the sample to check you quality ?
A:If you want to welding sample to check the quality, we can help you do this.
Just tell us your needs, when finished the testing, we can send testing video to you, if you need, we also can send welding sample to you.

Q: Does the machine can be customized according to my requirements ?
A: Yes, we have a strong technical team and have rich experience.
Tell us your needs, and we will customize your own solutions.
