Mini 3030 Jewelry Fiber Laser Cutting Machine for Silver Gold, Jewelry Name Necklace Laser Cutting Machine

Product Description

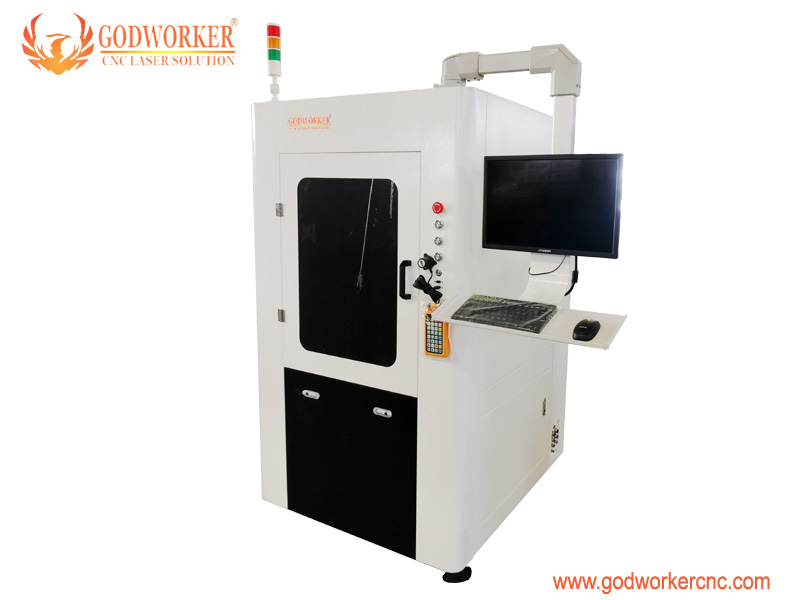

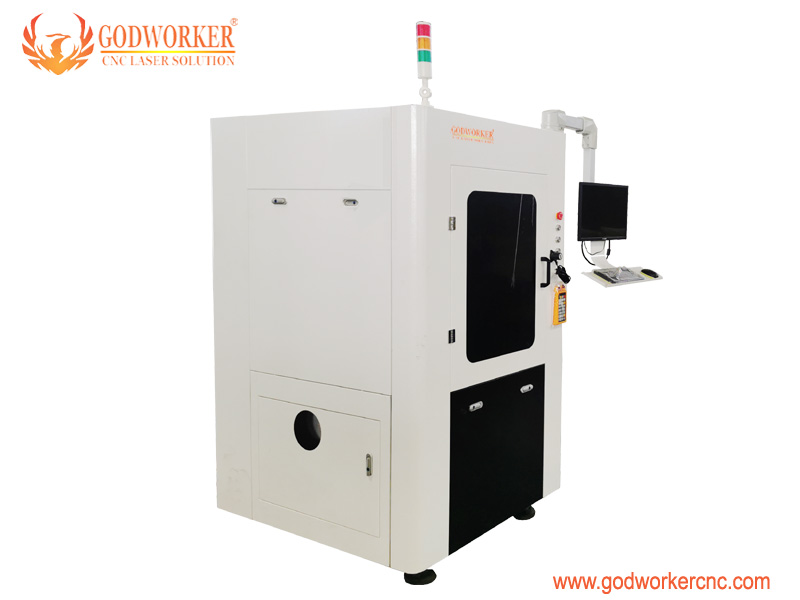

Godworker mini 3030 Jewelry fiber laser cutting machine for silver gold steel is full closed type fiber laser cutting machine, designed specially for precision cutting jewelry gold silver steel and small sheet metal. Occupy small floor area, safety cover, high stability, faster speed, high precision cutting peformance.

Product Parameters

Model

GW-3030F

Working Size

300x300mm

Laser Type / Wavelength

1080nm Raycus Fiber Laser (Option: JPT / IPG)

Laser Output Power

1000W

1500W

2000W

3000W

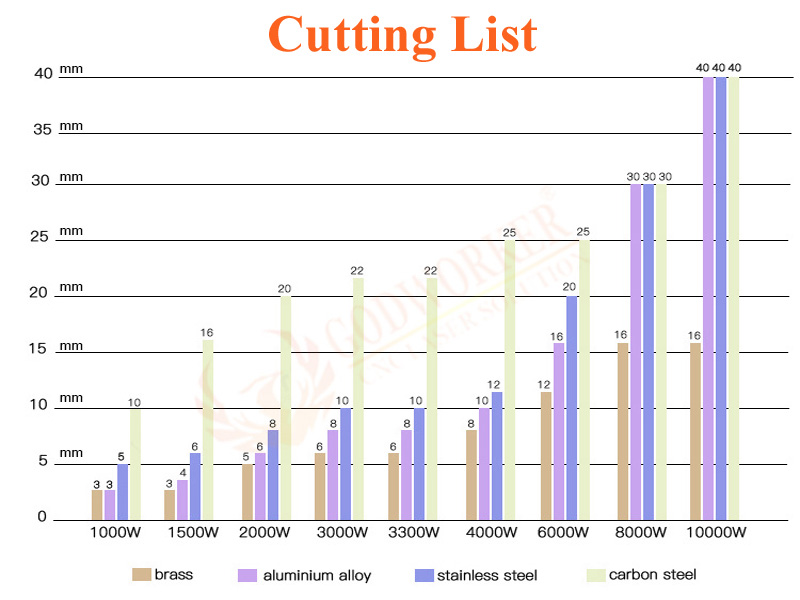

Cutting Thickness

< 24mm

Laser Head

Raytools cutting head BT220

BM110

Max Cutting Speed

0-700mm/s

Position Accuracy

<±0.01mm

Minimum Line width

<0.12mm

Working speed

0-350mm/s

Cooling System

S&A CWFL Water chiller

Driving System

Japan Panasonic Servo motor and drivers

Transmission

Taiwan PMI Linear Rail + TBI ball screw

Electric parts

France Schneider

Power Adjustment

0-100% controlling, (0-100% adjusting by software)

Aiming Position

Red-light position

Blowing System

Cabinet exhaust fan

Minimum Character

Chinese character 2.0mm, crisscross-row 1mm

Working Environment

Temperature: 0-45°C, Humidity: 5%-95%

Noise

<65Db(not include exhaust fan noise)

Lubrication system

Auto

Software

CYPCUT

Graphic support

AI, BMP, PLT, DXF, DST, etc

Protection level

IP54

Working Voltage

220V / 380V; 50Hz / 60Hz

Machine whole power

4.5KW

N.W / G.W

800KGs / 900KGs

Machine size

860*950*1840mm

Packing size

1860*1450*2080mm



Detailed Images

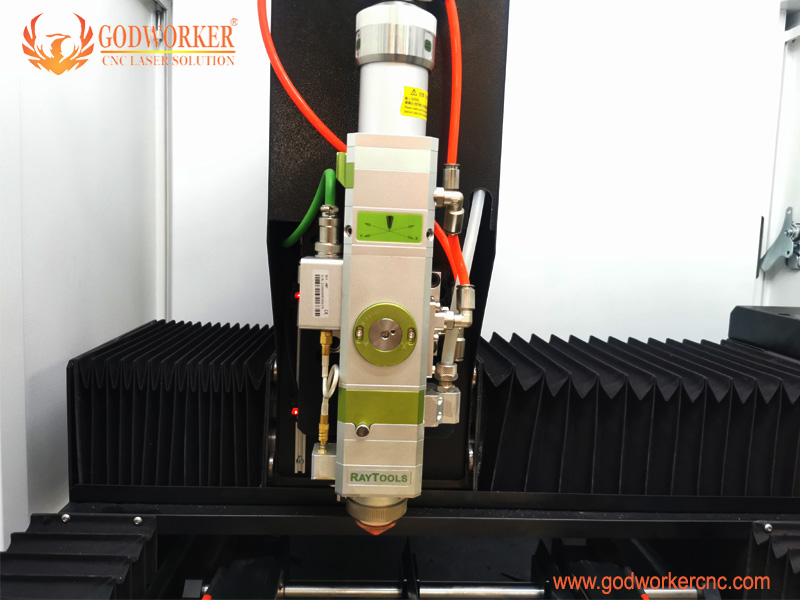

1. Adopt high precision and speed Raytools cutting head has stable laser beam that can make sure cutting edge more smoothly.

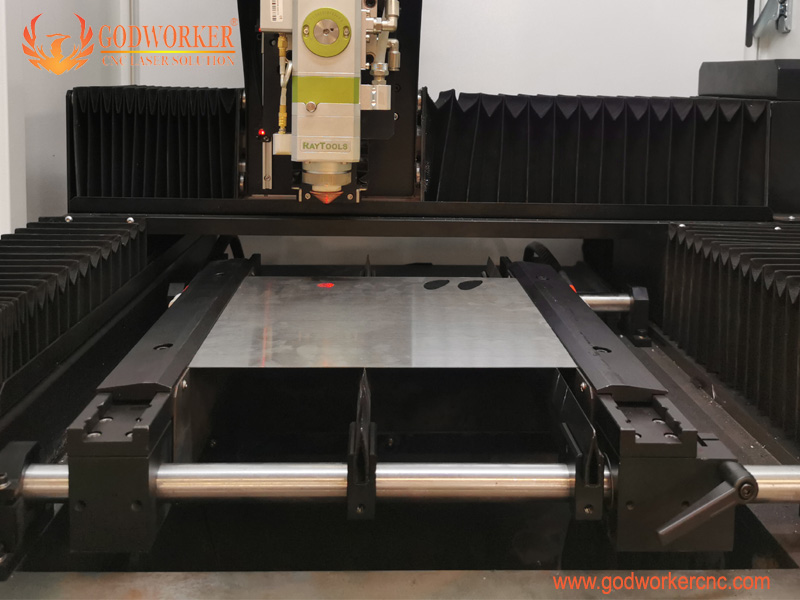

2. Pneumatic plateform: Suspended structure, high postioning accuracy, fast response speed and high sensitivity, easy to loading and uploading cutting objects.

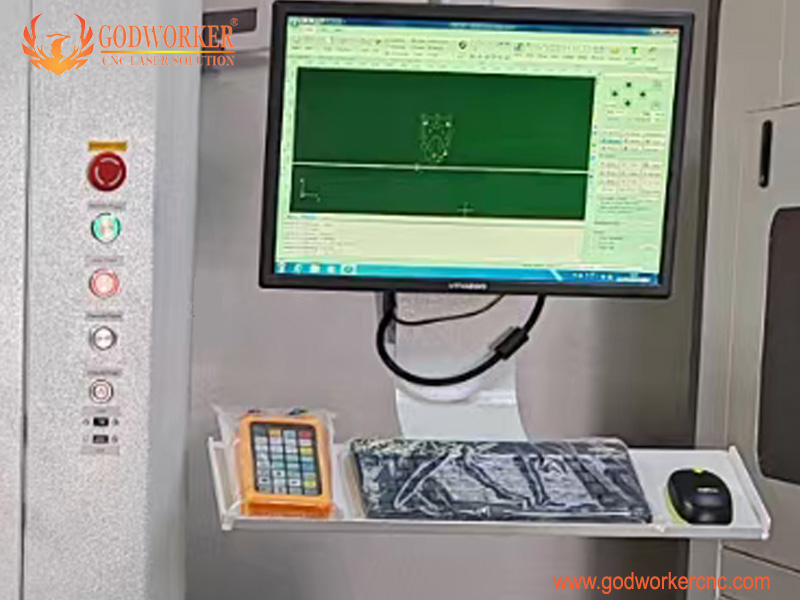

3. Work desk: machine with BCS100 controller, CYPCUT software support DXF, PLT etc files, easy operation.

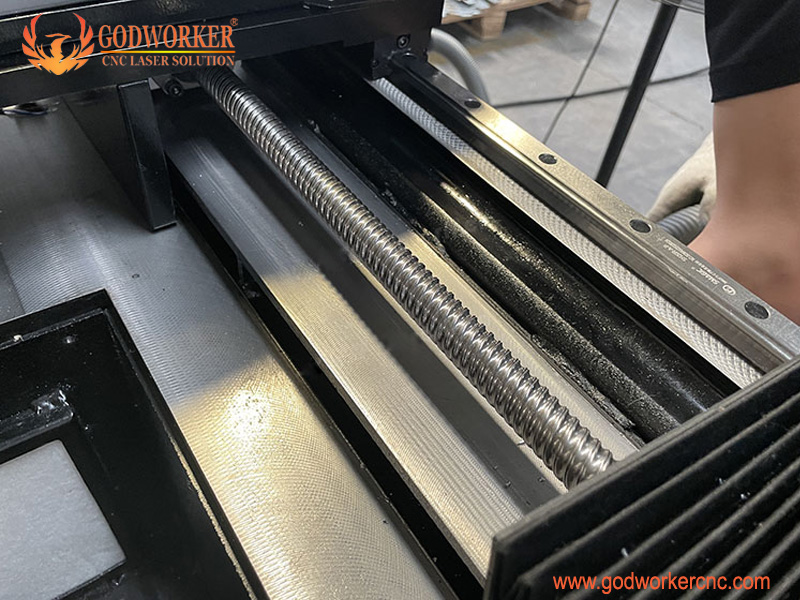

4. Adopt Japan SMG Linear rail and China TBI ballscrew ensure machine can high speed and precision work.

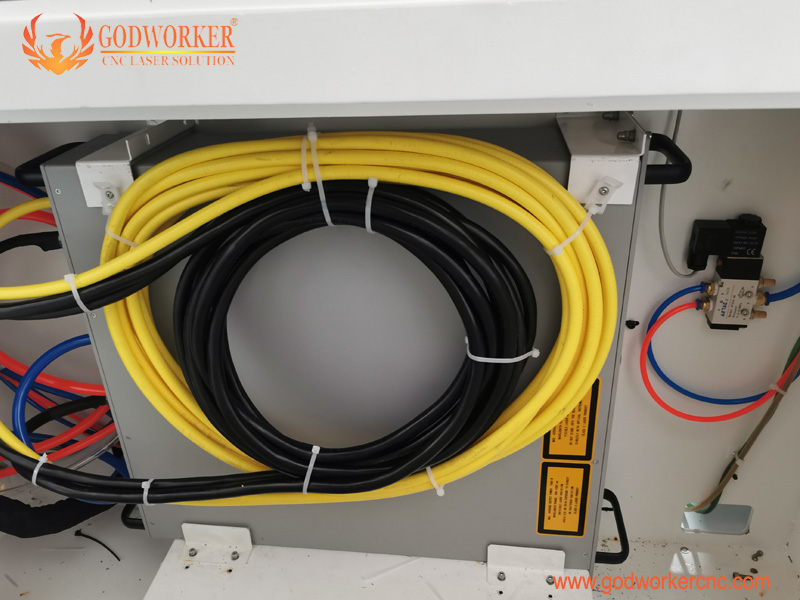

5. Laser source: (Raycus / JPT / IPG as option) 1000W, 1500W, 2000W, 3000W

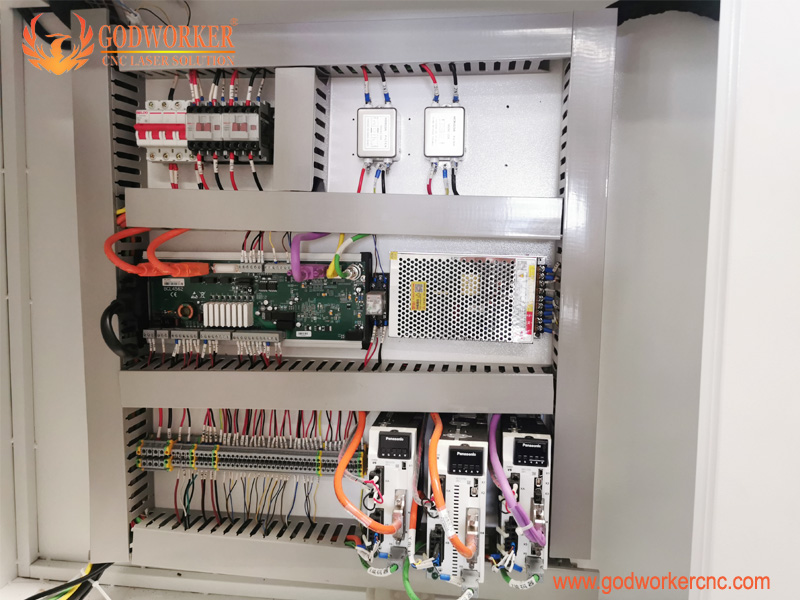

6. Control cabinet: DELIXI electric parts and Panasonic drivers. Cypcut control board.

7. Adopt top quality Dual temerature dual control mode S&A water chiller, interligent control temperature.

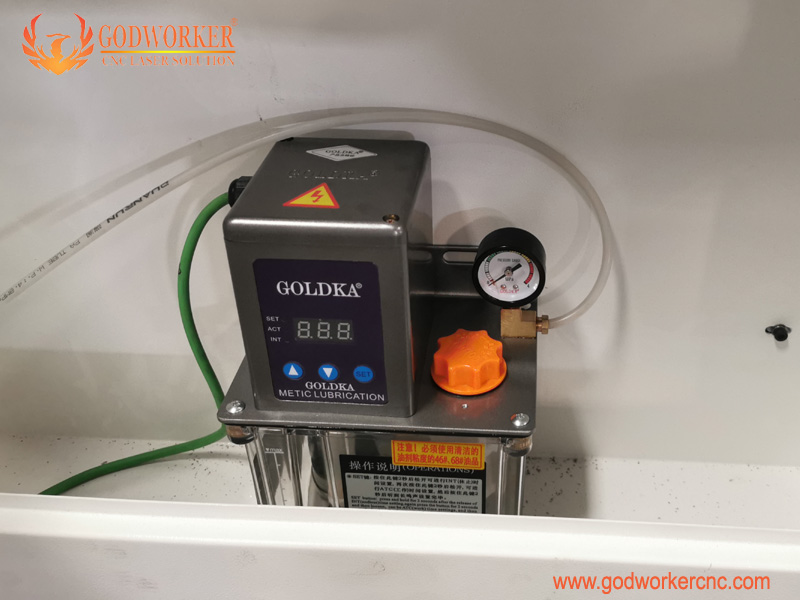

8. Auto lubrication system for Guide rail.

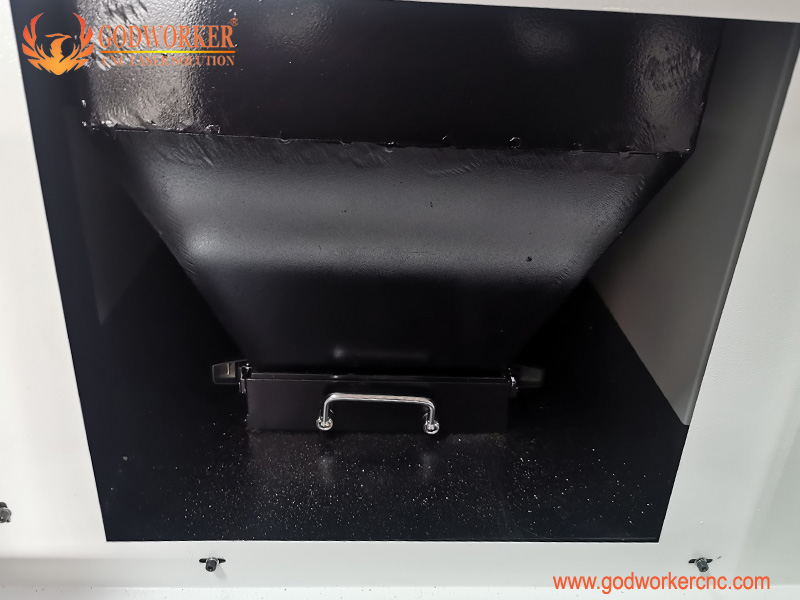

9. Dust collect drawer: laser welding sealed dust drawer help for collecting metal debris, Easy to recycle and reduce losses.


Service & Warranty
Pre-Sale Service:

1. Free sample cutting service:For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you for checking the cutting quality.
2. Progressing Solution Design:According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
3. Customized machine design:According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.



After-Sale Service:

1. Training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and support technical guide by remote,such as TeamViewer, E-mail, Wechat, Whatsapp, Skype, mobile, etc. when you meet some problem of installation, operation or adjusting.
2. You can come to our factory for training. Have a professional guidance that direct & effective face-to-face training. Here have assembled equipment, all sorts of tools and testing facility. Training time: 3~5 days (Recommended).
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator (if no English-speaking) for our engineers during the training period.



Warranty:

1. 3 years for the whole machine, laser device 18 months, chiller 12 months; len, mirror, nozzle (consume parts) without warranty.
2. Long life-time maintenance, after-sale department will offer 12/7 English online support.
3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.
4. After the warranty period expired, need to pay the actual maintenance cost if replace parts.
